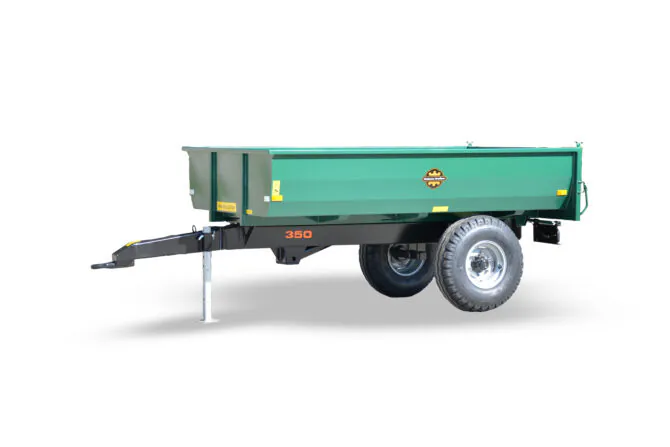

PT350D

Length (mm) (with HSD01)4350
Width (mm)1840
Height (mm)1480
Internal measurements of a platform (mm)3000x1720x550
Capacity (m3)2.84
Capacity with extensions (m3)-
Base (mm)3290
Empty weight(kg)740
Max load capacity (kg)3500
Total weight (kg)4240
Hitch load (kg)1500
Axel sum1
Permissible axel load (kg)2740
Hub/axel70x70, 6 bolts
Self steering axles-
Brake type300x90; 0 or 2 brakes
Speed limit (km/h)40
Suspension-
Hydraulic circuit working pressure of a brake (bar)160
Working pressure of hydraulic circuit (bar)180-200
Oil volume for tipping(L)1.8
Tilt cylinderKJ5487
Standard wheels11.5/80-15.3
Tilt angle52
Thickness of box’s bottom sheet(mm)3
Rear axle block-
Photos are illustrative

This is best for you, if:

You have a smaller tractor

You have a mini excavator

Soil transport, stone transport, etc

1. GUARANTEED QUALITY – ISO 9001 CERTIFICATE

Recognition of our work processes and a firm guarantee of product quality of our tractor trailers in agriculture and road construction. Palmse Metall OÜ is a certified ISO 9001 company and we make sure that our trailers leave our production after they have been tested properly. You can read about ISO 9001 certification process and Bureau Veritas here. A solid choice, isn’t it?

  • Strong and efficient ISO9001 certified Palmse Trailer

2. ASSEMBLY PRECISION ENSURES LONG LIFE – LASER CUTTING

The metal is cut with a modern Bystronic laser cutter, which significantly increases assembly accuracy of the tractor trailers. This in turn ensures a more stable quality and better durability for our products. So precise that you can feel the sharpness in the air!

  • laser-cutting-palmse-tractortrailer

3. EVEN STRONGER – LARGE PRESS BRAKE

Our press brake with large dimensions is among the largest in nearby countries. This gives the possibility to bend most of the side profiles in one piece, which in turn reduces the number of welds and increases strength. Here’s how tractor trailer design can meet strength – the profiled side provides strength to reduce the number of posts in order to lower the final weight of the trailer. You can read about the Finnish company Aliko here. So this is how strong and high quality tractor trailers are made!

ACCESSORIES

  • Rippluuk

Hanging backdoor

  • vandaga-tugijalgIMG_4006 copy

Support leg with a crank

  • Hyd.tugijalg_1

Hydraulic support leg

  • kuluteras-veebilehele

Hardox bottom

  • Tent with rubber stripes

Load cover (tent)

  • Working light LED

Rear working light

  • allasoidutoke

Rear pumper

  • jarelhaagise konks rockinger

Trailer hook, rockinger

  • polditav veosilmus

Boltable towing eye

  • haagise porilauad ees ja taga

Front and rear mudguards

  • haagis õhkpiduritega

Air brakes

  • Haagise käsipidur

Handbrake with a crank

  • Haagise Led tuled

LED side lights

Ask for an offer

    DUMPER TRAILERS

    Dumper trailers is the largest product group in the product range of Palmse Trailer. It has the highest number of variations or models as well as the greatest production capacity.
    The advantage of dumper trailers over other trailer types is their versatility. Due to the different backdoors and additional extensions that are available, the product’s uses are limitless, i.e. it can be used for various large-scale transportation works, such as those involving soil, manure, gravel, grain, etc. Dumper trailers that are equipped with Palms cranes are perfect for farmers as well as companies for loading work in landscaping, forestry, harvesting, etc.

    The advantages of Palmse Trailer’s dumper trailers are:
    • strong box;
    • durable bottom frame;
    • dependable dumping system;
    • bogie axle with springs that relieve heavy loads and hydraulic
    drawbar suspension for larger models;
    • air or hydraulic brake system, according to the client’s preferences.
