Palmse Trailer Products PLATFORM TRAILERS

PLATFORM TRAILERS

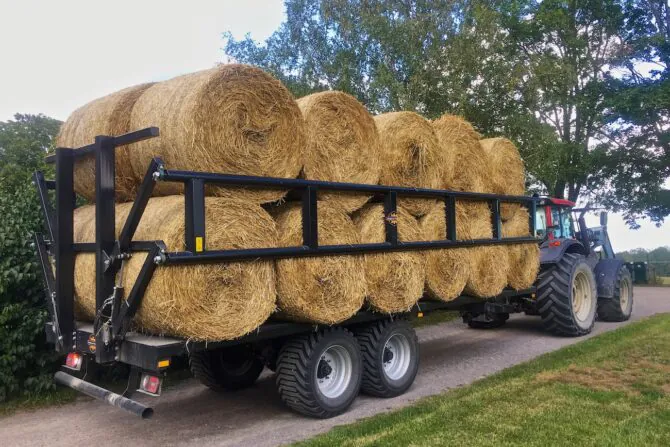

Our model range of platform trailers includes examples which have loading areas of between 6.5 to 9.8m. Trailers with a loading platform greater than 7.5m can be ordered with hydraulic bale holders. The hydraulic system for the bale holders is supplied by safety valves that prevent the support from falling downwards if the oil pressure is lost for some reason. Likewise, the use of safety valves also makes it possible to connect hydraulic hoses to the tractor when the system is under pressure. To reduce slipperiness, the platforms on these trailers are covered with corrugated steel plates, and there are no high edges. Due to this, goods can easily be loaded onto the trailer on euro pallets, for example. The construction of the axles makes it possible to mount wheels depending on the model with a width of 400-700 mm onto the trailers, thereby ensuring the best possible movement across fields. Double-axle trailers are available with bogie or spring axles, and these are designed so that the load is divided between the trailer and its drawbar. This transfers some of the load onto the rear wheels of the tractor, thereby guaranteeing better movement on softer ground. As a new product in the class of platform trailers, we offer a double-axle trailer with a higher load capacity, which is primarily intended for the transportation of silage rolls. Due to its load capacity of 19 tons, and hydraulic and extended sides, it can also be used for transporting straw rolls with a larger diameter (between 1.3 and 1.8 m).

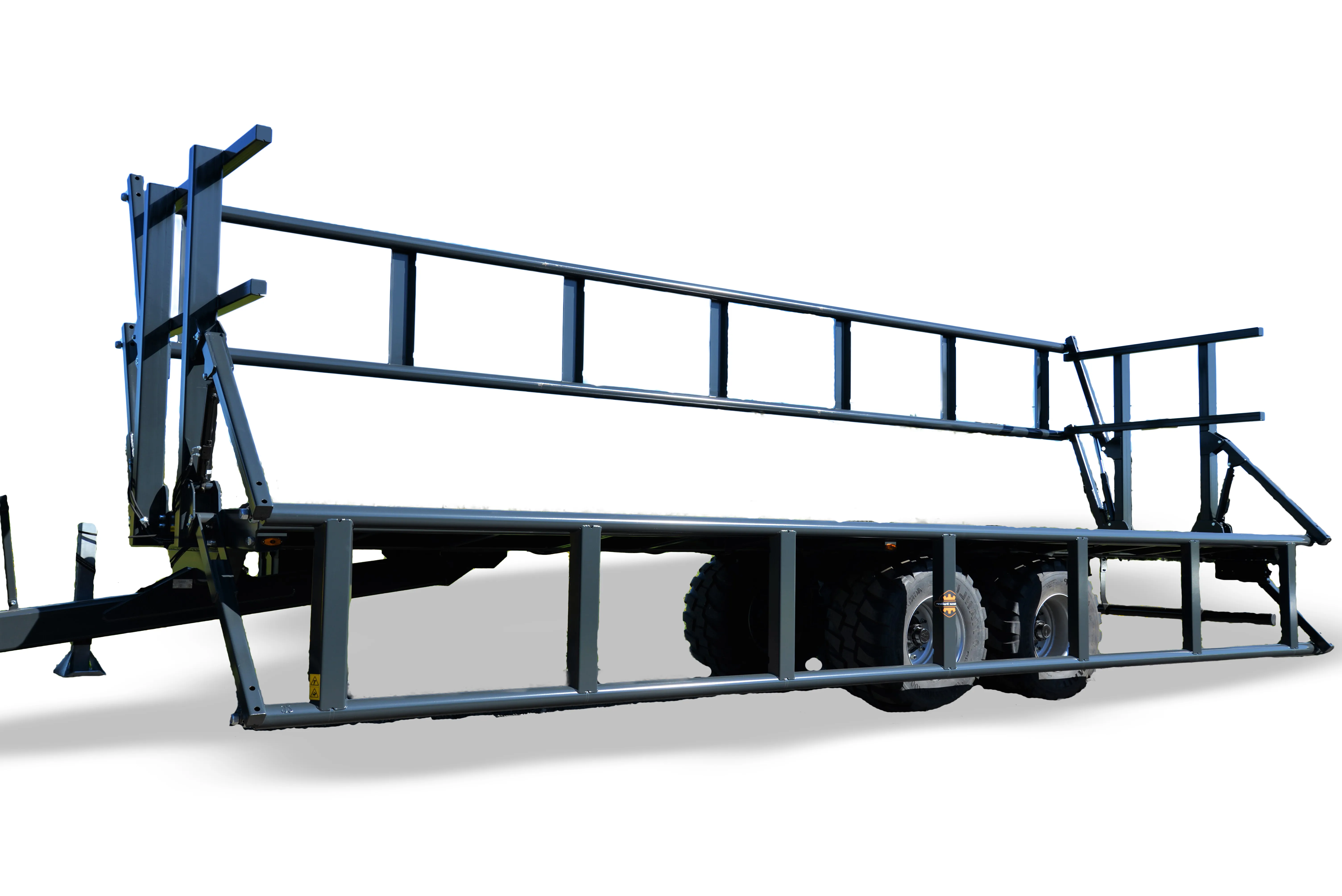

PT3925-19T – hay trailer for tractors

Max load capacity (kg): 19000
Suspension: Mechanical bogie
Possible to order 3-fold surface treatment
Order hydraulic bale holders
Internal measurements of a platform (mm): 9220x2460x1005*/ 1800**

View more

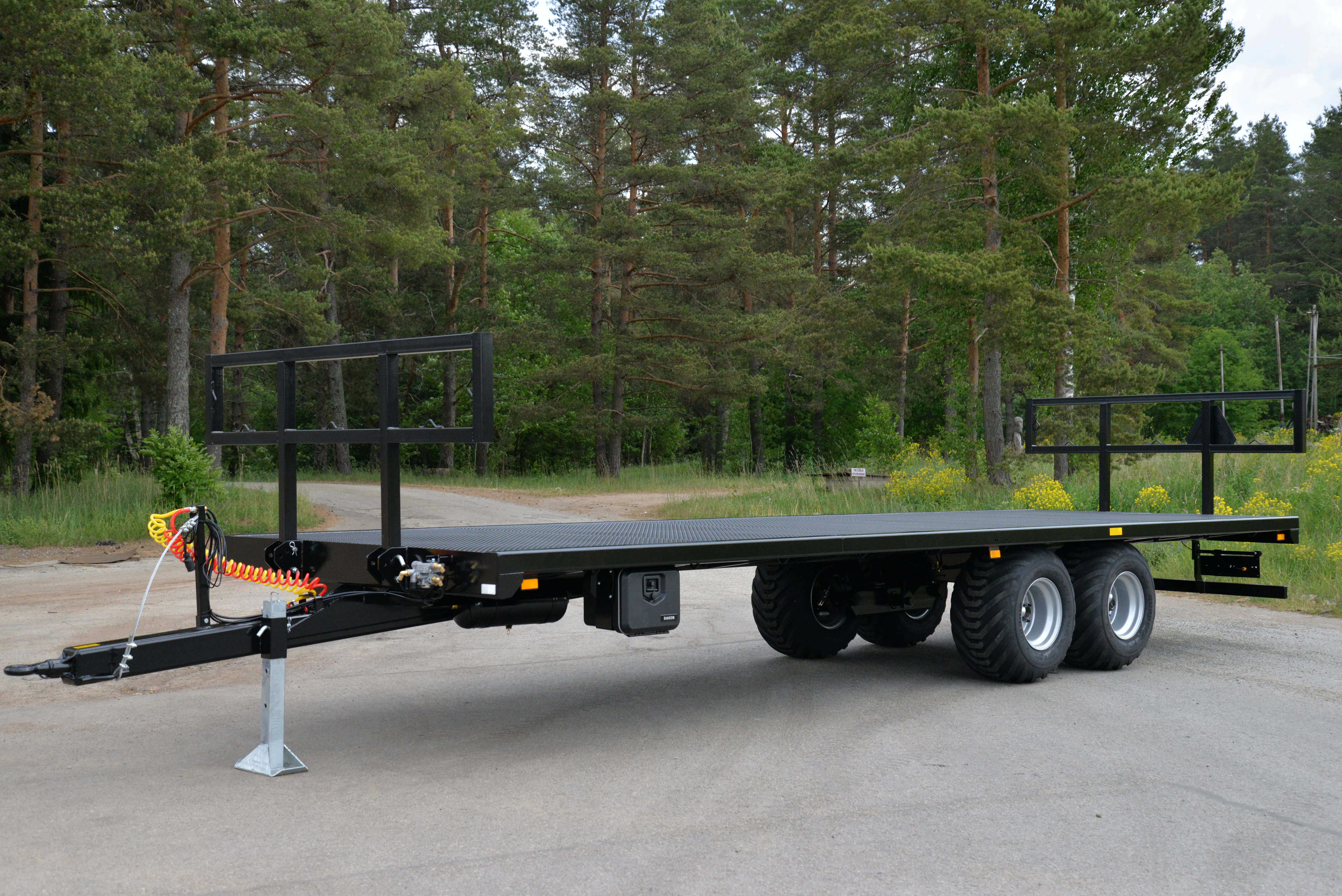

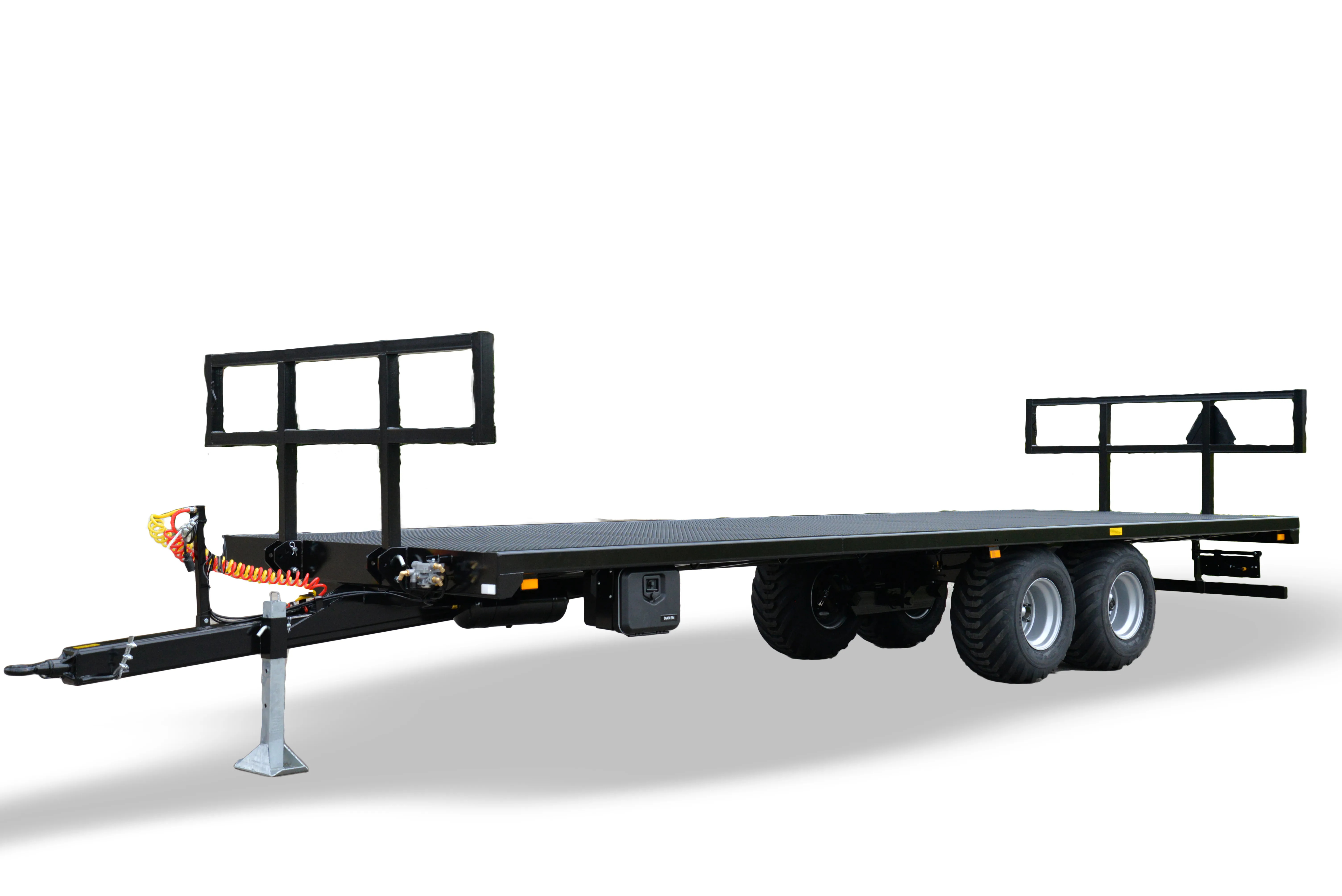

PT3800 – quality hay trailer

Max load capacity (kg): 12000
Suspension: Mechanical bogie
Possible to order a 3-fold surface treatment
Order hydraulic bale holders
Internal measurements of a platform (mm): 8020x2460x1005*/ 1800**

View more

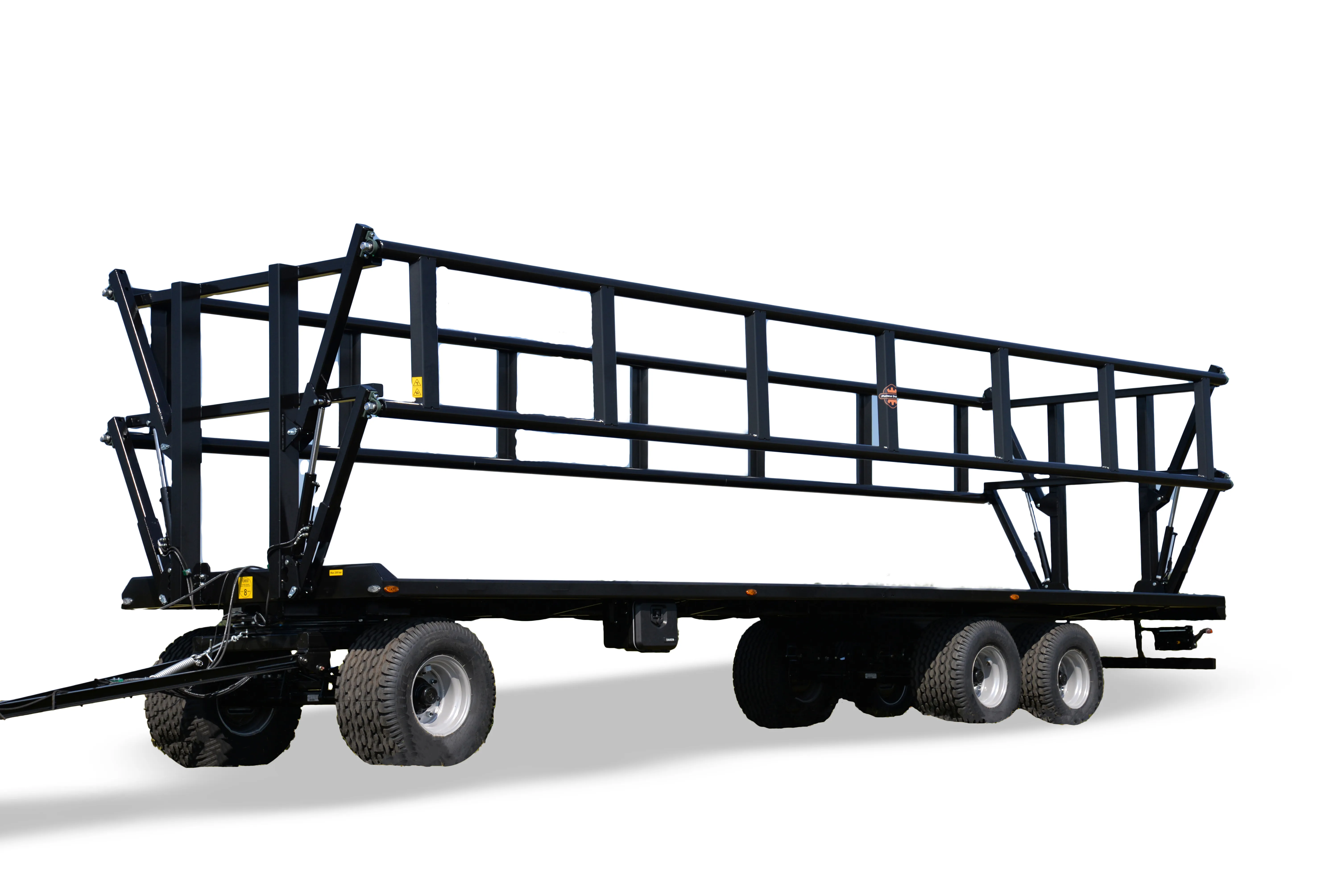

PT3980F – hay trailer

Max load capacity (kg): 20000
Suspension: Single+Tandem parabool springs
It is possible to order a 3-fold surface treatment
Order hydraulic ball supports
Internal measurements of a platform (mm): 9800x2460x1005*/1800**

View more

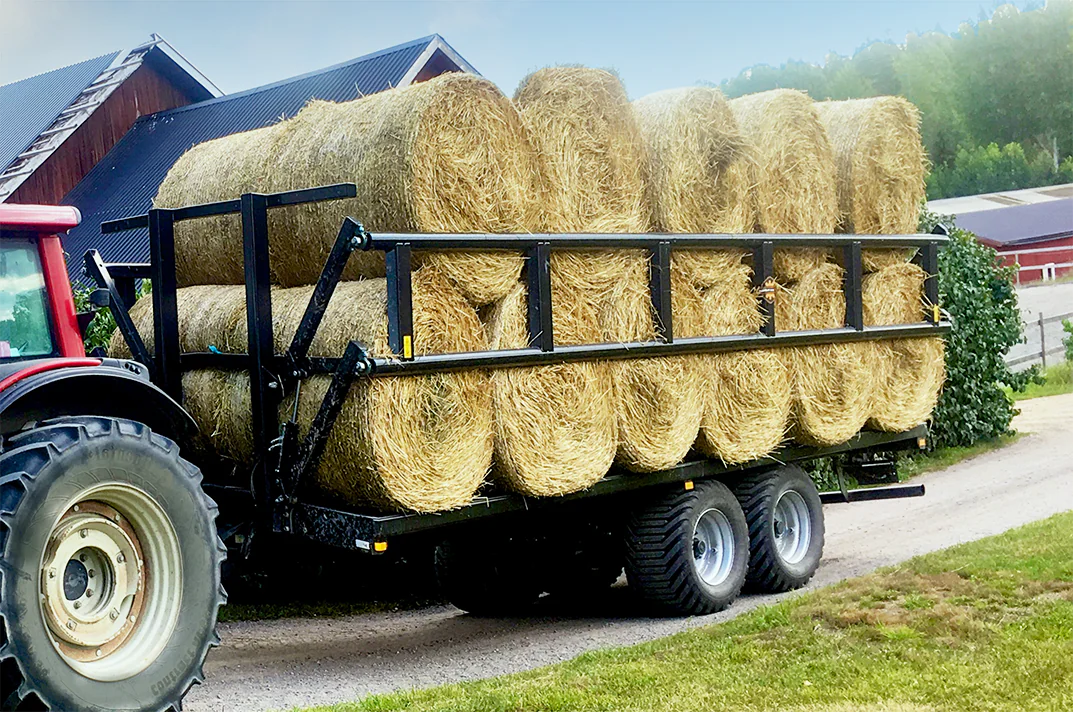

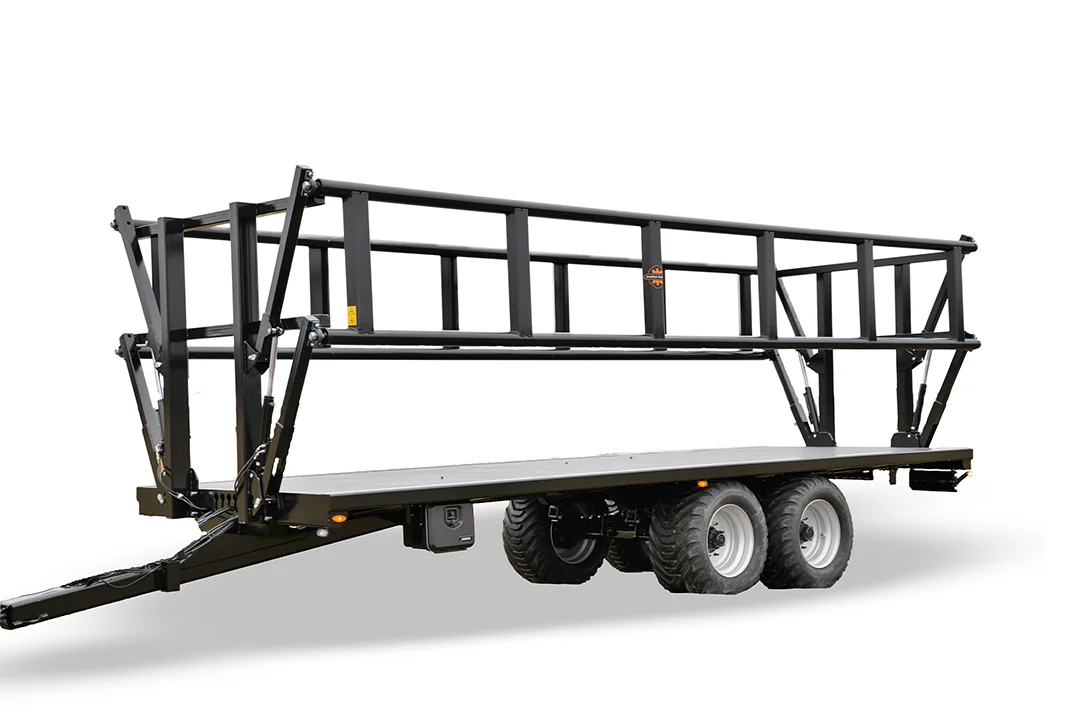

PT3750PS – hay trailer

Max load capacity (kg): 14000
Suspension: Tandem parabolic
It is possible to order a 3-fold surface treatment
Order hydraulic ball supports
Internal measurements of a platform (mm): 7520x2460x1005*/ 1800**

View more

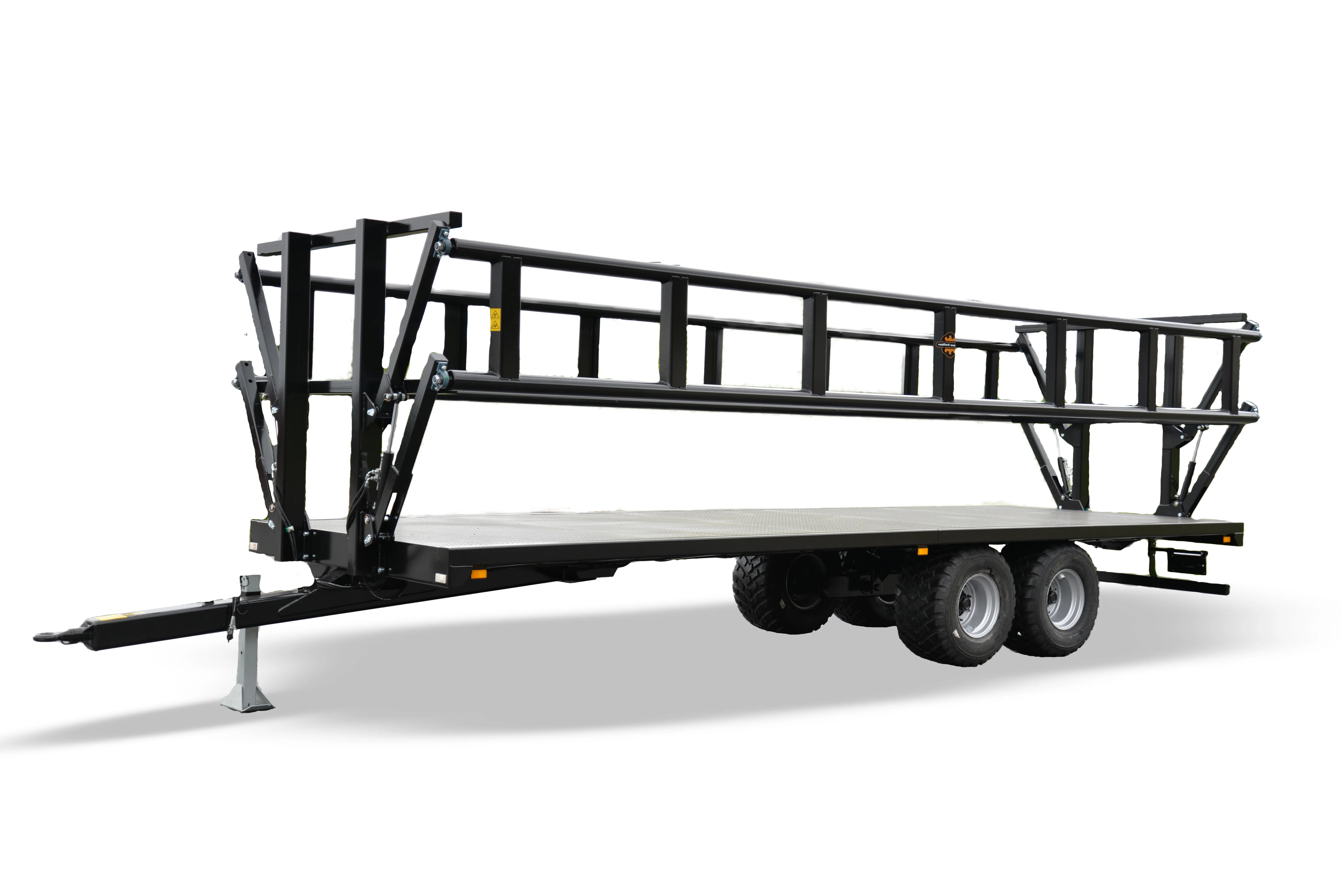

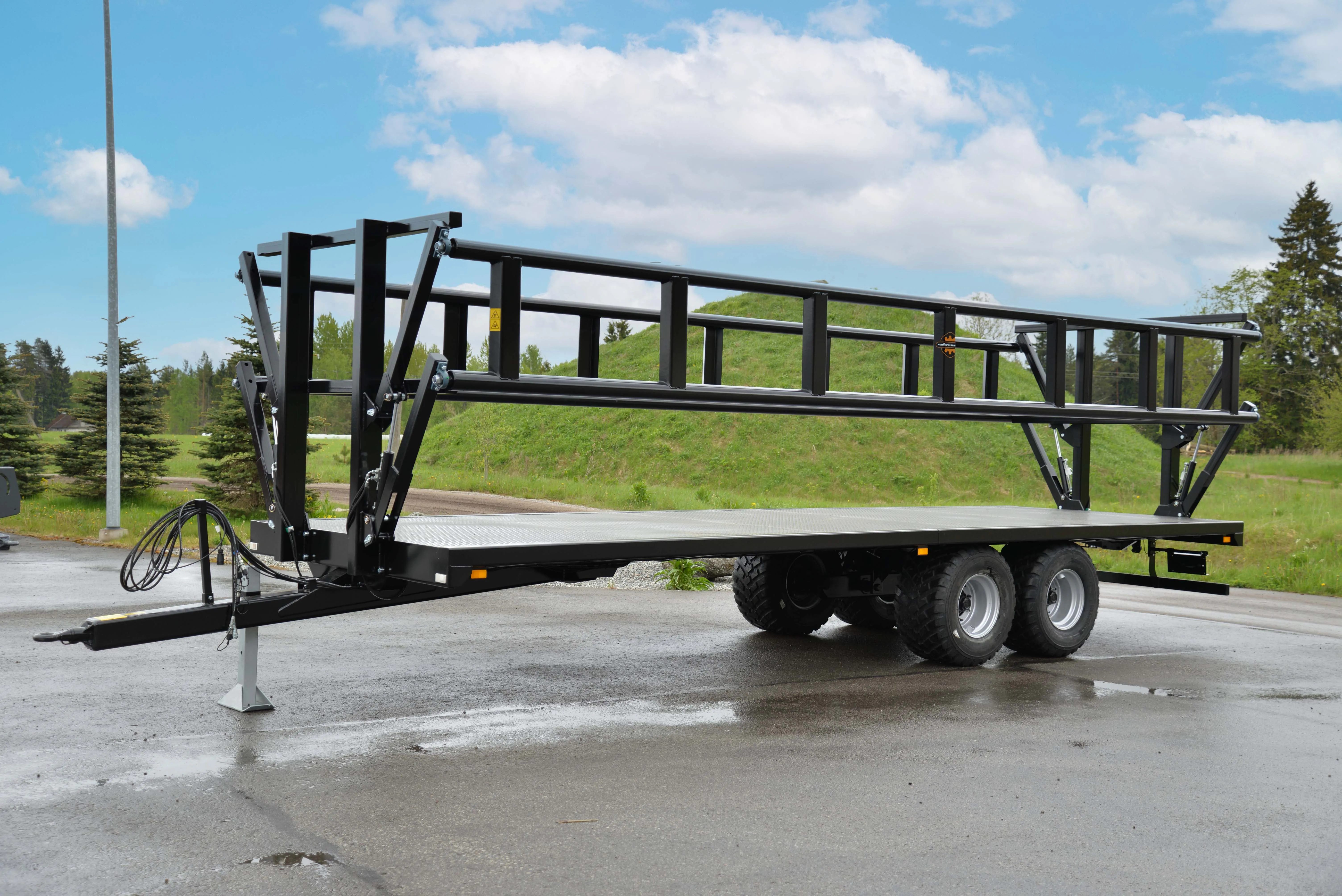

PT3925 – bale trailer

Max load capacity (kg): 14000
Suspension: Mechanical bogie
Possible to order a 3-fold surface treatment
Order hydraulic bale holders
Internal measurements of a platform (mm): 9220x2460x1005*/ 1800**

View more

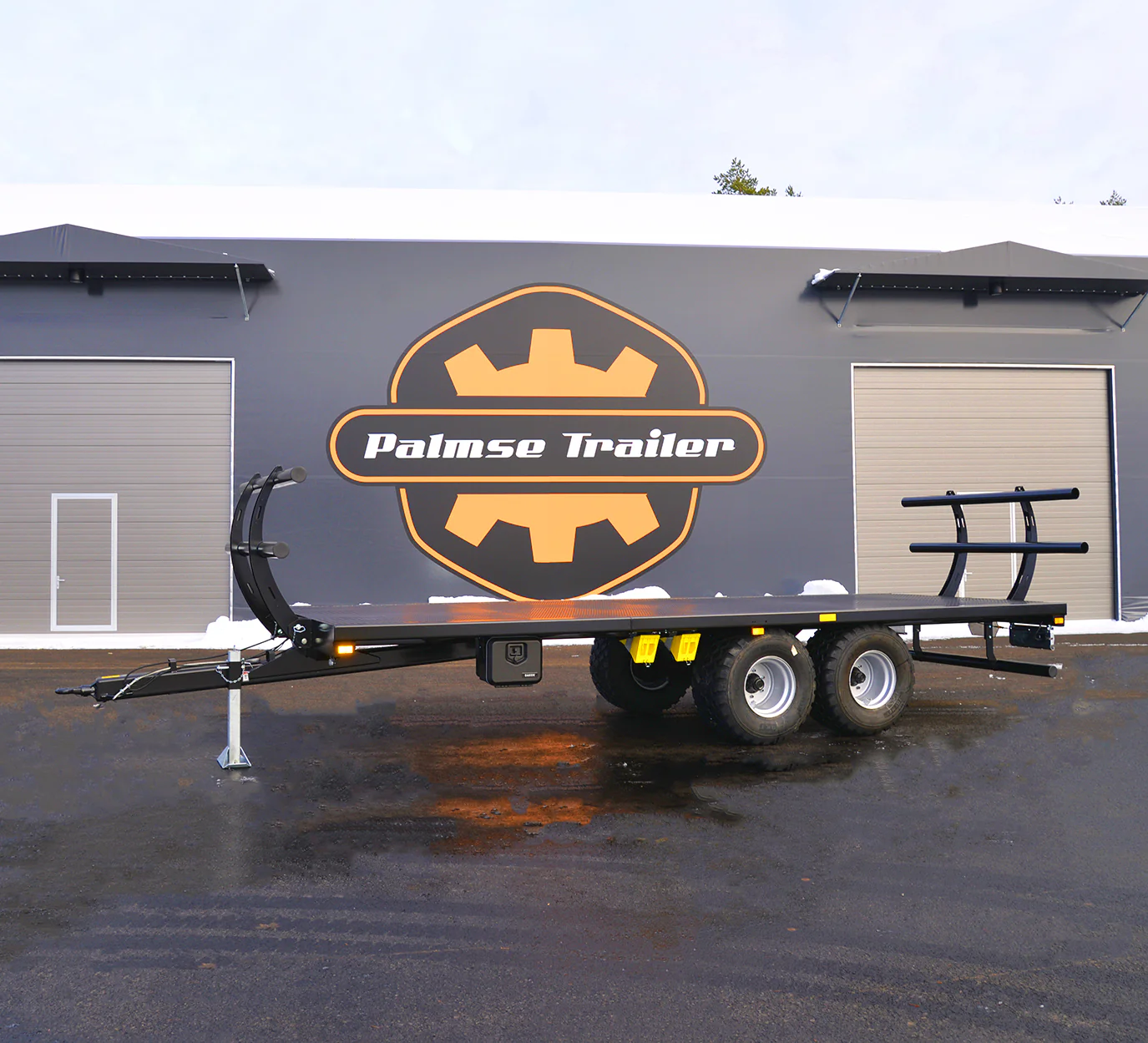

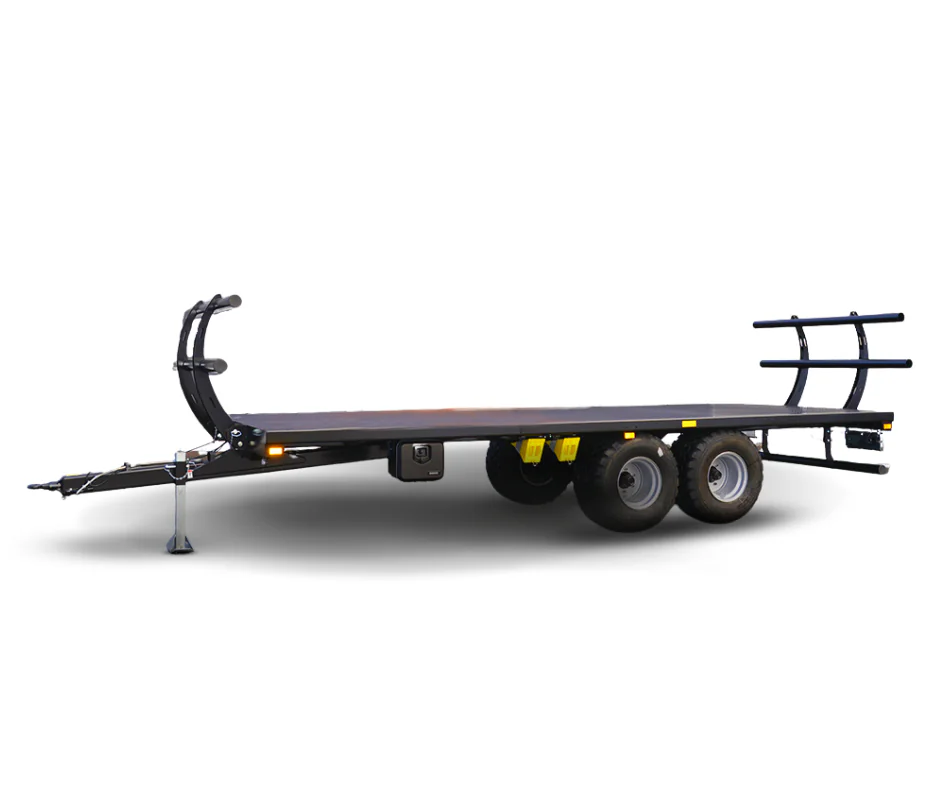

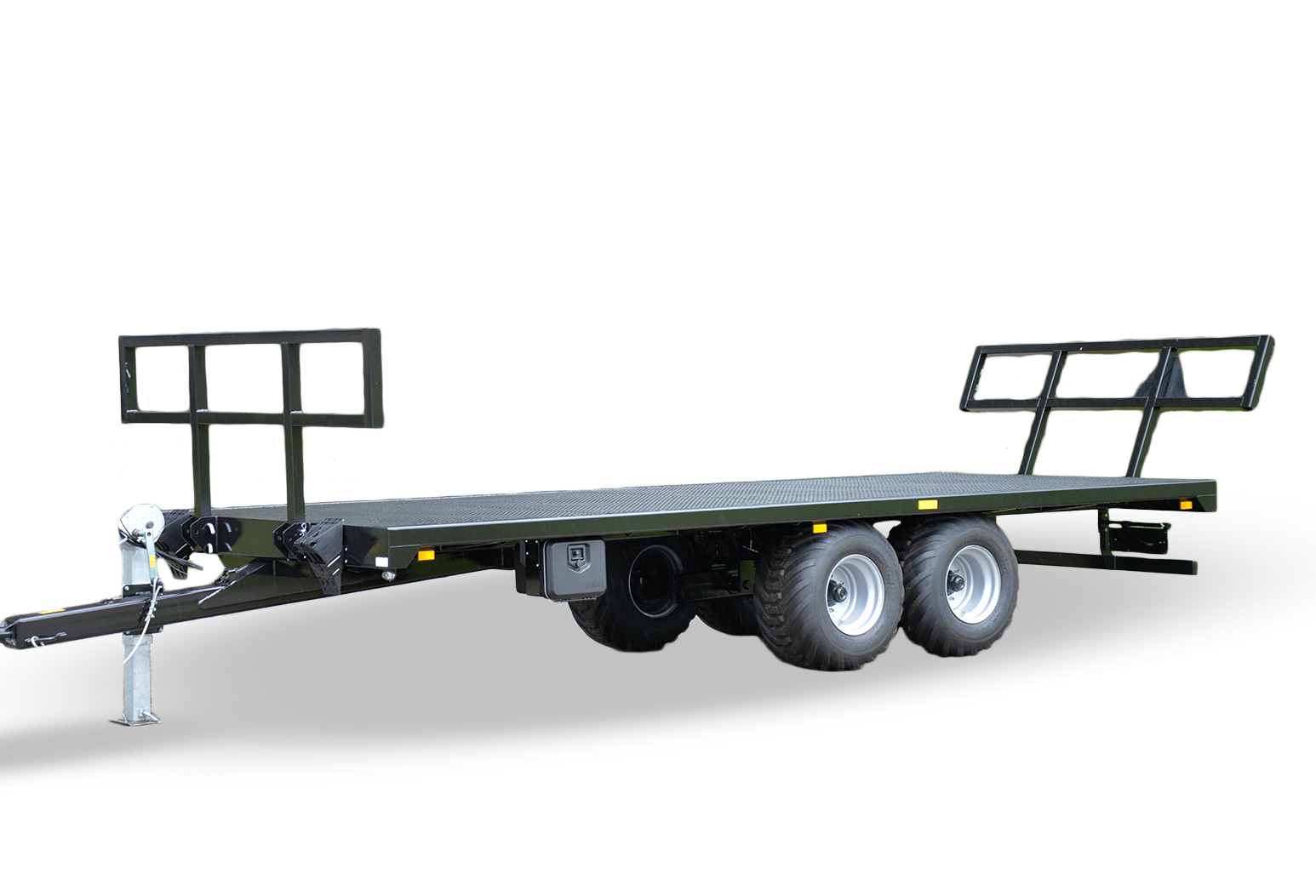

PT3650 – bale trailer

Max load capacity (kg): 10000
Suspension: Mechanical bogie
It is possible to order a 3-fold surface treatment
Order hydraulic ball supports
Internal measurements of a platform (mm): 6520x2460x1005*

View more
