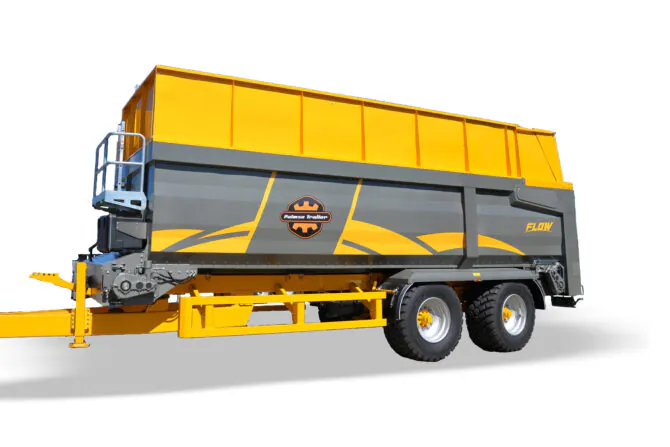

PT9820 FLOW – conveyor belt trailer with auger feeder
| Length (mm) | 10450/ (11950 - length with auger feeder) |
| Width (mm) | 2550 |
| Height (mm) | 3142/3800 |
| Internal measurements of a platform (mm) | 8165x2310x1600 |
| Capacity (m3) | 30,2 |
| Capacity with extensions (m3) | 49,0 |
| Base (mm) | 6590 + 1805 |
| Empty weight(kg) | 7980 |
| Max load capacity (kg) | 20020 |
| Total weight (kg) | 28000 |
| Hitch load (kg) | 4000 |
| Axel sum | 2 |
| Permissible axel load (kg/axel) | 12000 |
| Hub/axel | 150x150, 10 bolts |
| Self steering axles | Behind |
| Brake type | FL4118; 4 brakes |
| Speed limit (km/h) | 40 |
| Suspension | Tandem air |
| Hydraulic circuit working pressure of a brake (bar) | - |
| Working pressure of hydraulic circuit (bar) | 180-200 |
| Oil volume for tipping(L) | - |
| Tilt cylinder | - |
| Standard wheels | 600/55R-26.5 |
| Tilt angle | - |
| Thickness of box’s bottom sheet(mm) | - |
| Thickness of box’s side sheet(mm) | - |
| Rear axle block | - |
This is best for you, if:
You have at least a 250 hp tractor that has 80L/min hydraulic oil capacity
Transport of grain, silage and other bulk materials, euro pallets etc

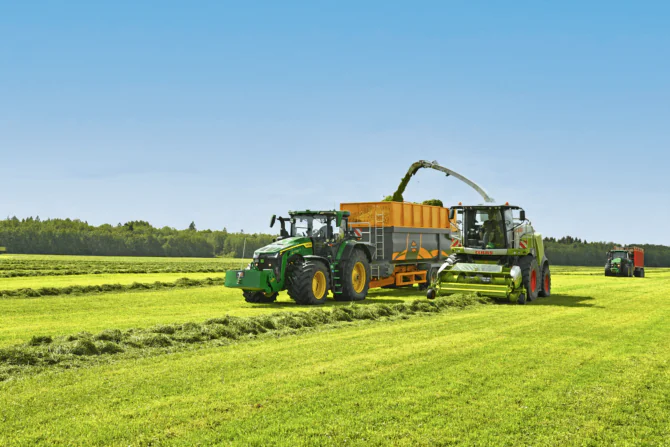

Transport of hay and silage rolls when loading with a moving bottom

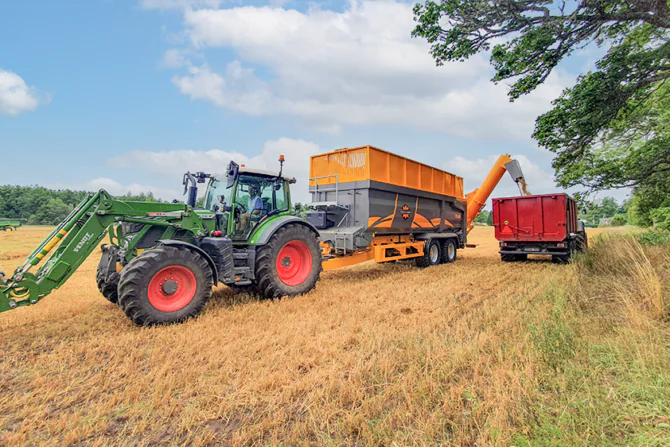

1. Meet the best conveyor belt trailer with grain transfer feeder
This conveyor belt tractor trailer is designed with a possibilty to add auger feeder for grain transfer. PT9820 FLOW helps you to do so many jobs: transport silage, grain, pallets, big bags for fertilizer etc and on the other hand you can transfer grain with a screw feeder. Live bottom transfers substances very fast, which helps you to save time and energy.
2. this live bottom trailer can be ordered with or without extensions
Depending on the purpose, whether transporting grain or silage, hay or pallets, you can use this trailer for so many purposes. There is only one side post to match the strength with the design – the profiled side provides strength to reduce the number of posts in order to lower the final weight of the trailer.

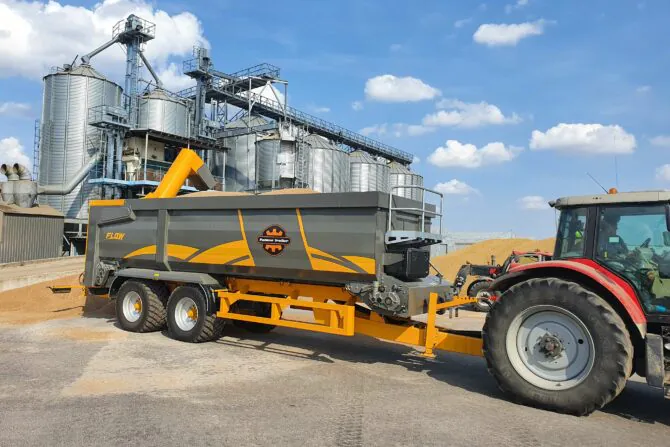

3. The screw and the body of screw feeder is made of wear resistant steel to provide greater durability.
The conveyor belt trailer has two main versions: the main purpose is to reload the grain with a screw feeder at a speed of up to 15 m3/min, which needs PTO 540rpm. Another version of the trailer is the loading of silage and bulk material using a conveyor belt at a speed of up to 49m3/min, that requires 80L/min of hydraulic oil capacity.

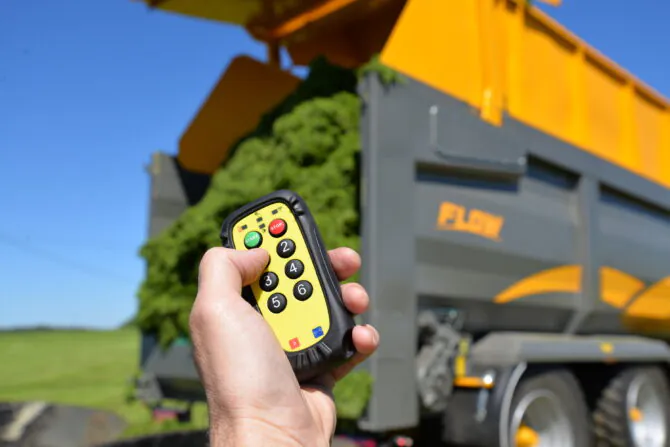

4. Greater ease of use – remote controlled conveyor belt and hatch
In this way, everything can be done faster, and it is also more convenient and safer: the possibility to carry out loading and reloading operations outside the tractor cab.
In addition – we are using high quality components from top to bottom. For example – the axles and suspension is from highly appreciated producer BPW. Read about them here.
5. GREATER DURABILITY – ROBOT WELDING
Most boxes and frames of the tractor trailers in Palmse Trailer are made either completely or partially by robot welding. This ensures consistent solid quality and increased durability which are very important features in agriculture and farming. We have three robots in our production, cool, right?
6. GUARANTEED QUALITY – ISO 9001 CERTIFICATE
Recognition of our work processes and a firm guarantee of product quality of our tractor trailers in agriculture and road construction. Palmse Metall OÜ is a certified ISO 9001 company and we make sure that our trailers leave our production after they have been tested properly. You can read about ISO 9001 certification process and Bureau Veritas here. A solid choice, isn’t it?
7. ASSEMBLY PRECISION ENSURES LONG LIFE – LASER CUTTING
The metal is cut with a modern Bystronic laser cutter, which significantly increases assembly accuracy of the tractor trailers. This in turn ensures a more stable quality and better durability for our products. So precise that you can feel the sharpness in the air!
8. EVEN STRONGER – LARGE PRESS BRAKE
Our press brake with large dimensions is among the largest in nearby countries. This gives the possibility to bend most of the side profiles in one piece, which in turn reduces the number of welds and increases strength. Here’s how tractor trailer design can meet strength – the profiled side provides strength to reduce the number of posts in order to lower the final weight of the trailer. You can read about the Finnish company Aliko here. So this is how strong and high quality tractor trailers are made!
ACCESSORIES
Hydraulic tailgate in standard
Hydraulic support leg in standard
Air suspension in standard
Galvanized front platform for volume trailers
Load cover (tent)
Rear working light
Side pumper in standard for live bottom trailer
Trailer hook, rockinger
Boltable towing eye
Front and rear mudguards
Air brakes
LED side lights
Remote control in standard
Ask for an offer
DUMPER TRAILERS
Dumper trailers is the largest product group in the product range of Palmse Trailer. It has the highest number of variations or models as well as the greatest production capacity.
The advantage of dumper trailers over other trailer types is their versatility. Due to the different backdoors and additional extensions that are available, the product’s uses are limitless, i.e. it can be used for various large-scale transportation works, such as those involving soil, manure, gravel, grain, etc. Dumper trailers that are equipped with Palms cranes are perfect for farmers as well as companies for loading work in landscaping, forestry, harvesting, etc.
The advantages of Palmse Trailer’s dumper trailers are:
• strong box;
• durable bottom frame;
• dependable dumping system;
• bogie axle with springs that relieve heavy loads and hydraulic
drawbar suspension for larger models;
• air or hydraulic brake system, according to the client’s preferences.
CONVEYOR BELT TRAILER
Our efforts to find the best solutions and the intention to increase the competence and level of complexity of manufacturing trailers produced in Estonia have paved the way for entering a completely new segment. The conveyor belt dumper trailer PT9820 FLOW is the cutting edge of Estonian engineering – the most sophisticated trailer in Palmse Trailer history. Its design, production, assembly and testing have been an exciting challenge for everyone. We started the project already in November 2020 and the whole design period took almost a year. Its complexity also involved the use of outsourcing, which required the involvement of different parties.
The conveyor belt trailer has two main versions:
• the main purpose is to reload the grain with a screw
feeder at a speed of up to 15 m3/min;
• another version of the trailer is the loading of silage
and bulk material using a conveyor belt at a speed of
up to 49m3/min.
