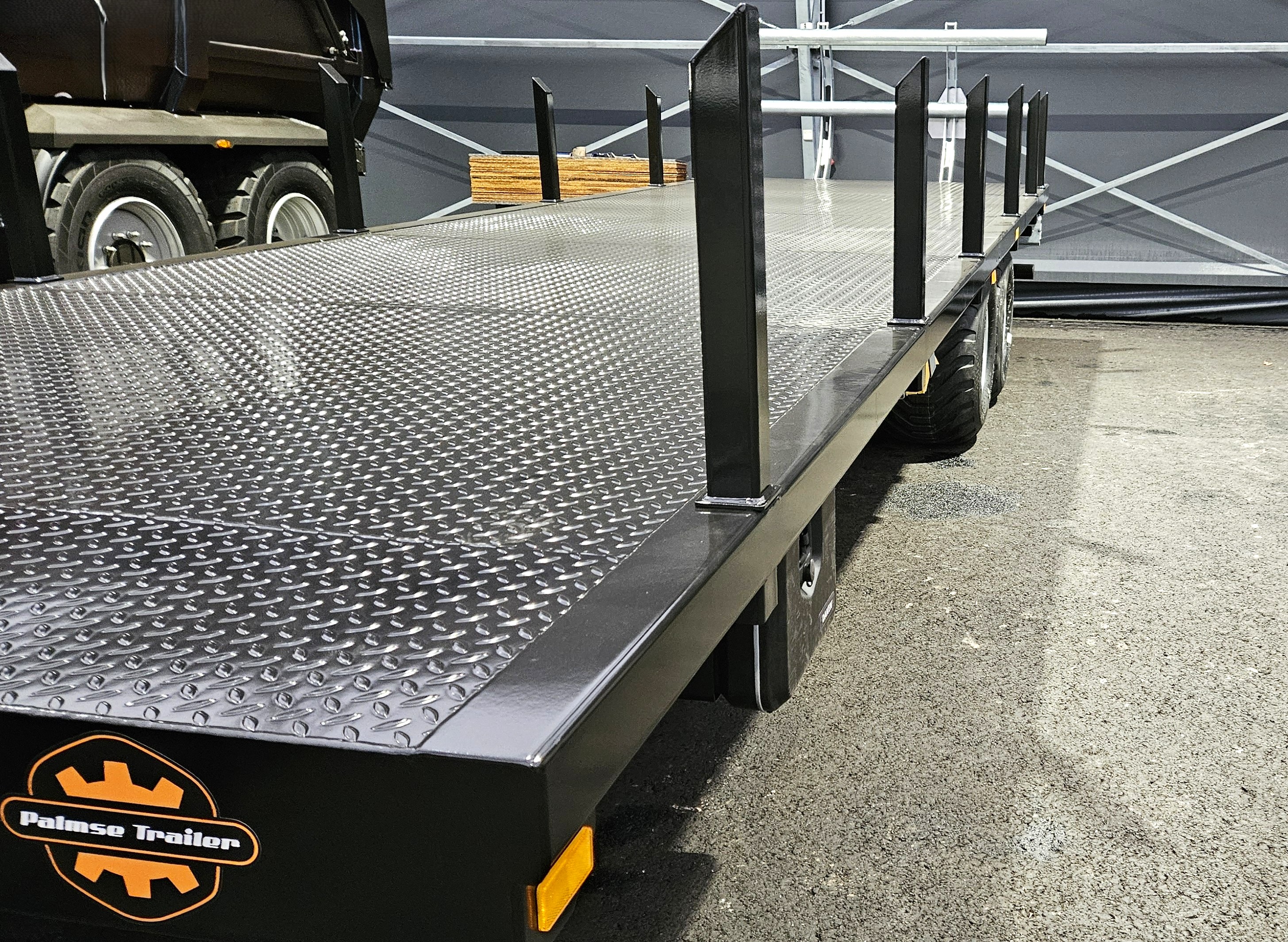

PT3800 hay trailer
| Length (mm) | 9785 |
| Width (mm) | 2460 / 2580** |
| Height (mm) | 1054 / 2060* / 2854** |
| Internal measurements of a platform (mm) | 8020x2460x1005*/ 1800** |
| Capacity (m3) | - |
| Capacity with extensions (m3) | - |
| Base (mm) | 6280+1050 |
| Empty weight(kg) | 2600* / 3391** |
| Max load capacity (kg) | 12000* / 11209** |
| Total weight (kg) | 14600 |
| Hitch load (kg) | 3000 |
| Axel sum | 2 |
| Permissible axel load (kg/axel) | 5800 |
| Hub/axel | 80x80, 8 bolts |
| Self steering axles | - |
| Brake type | 300x90; 0; 2 or 4 brakes |
| Speed limit (km/h) | 40 |
| Suspension | Mechanical bogie |
| Hydraulic circuit working pressure of a brake (bar) | 160 |
| Working pressure of hydraulic circuit (bar) | - |
| Oil volume for tipping(L) | - |
| Tilt cylinder | - |
| Standard wheels | 500/50-17 |
| Tilt angle | - |
| Thickness of box’s bottom sheet(mm) | 4 |
| Thickness of box’s side sheet(mm) | - |
| Rear axle block | - |
This is best for you, if:
You have at least a 120 hp tractor
Transport in silage, hay bales, fertilizer bags, etc
1. GUARANTEED QUALITY – ISO 9001 CERTIFICATE
Recognition of our work processes and a firm guarantee of product quality of our tractor trailers in agriculture and road construction. Palmse Metall OÜ is a certified ISO 9001 company and we make sure that our trailers, including hay trailers leave our production after they have been tested properly. You can read about ISO 9001 certification process and Bureau Veritas here. A solid choice, isn’t it?
2. ASSEMBLY PRECISION ENSURES LONG LIFE – LASER CUTTING
The metal is cut with a modern Bystronic laser cutter, which significantly increases assembly accuracy of the tractor trailers. This in turn ensures a more stable quality and better durability for our products. So precise that you can feel the sharpness in the air!
3. EVEN STRONGER – LARGE PRESS BRAKE
Our press brake with large dimensions is among the largest in nearby countries. This gives the possibility to bend most of the side profiles in one piece, which in turn reduces the number of welds and increases strength. Here’s how tractor trailer design can meet strength – the profiled side provides strength to reduce the number of posts in order to lower the final weight of the trailer. You can read about the Finnish company Aliko here. So this is how strong and high quality tractor trailers are made!
4. A reliable partner – 20 years of experience
Tractor trailer models have been tested and developed over the years based on feedback from farmers to increase the ease of use and durability. We have put a lot into enhancing the details and bring in new solutions. Our tractor trailers are highly valued in Scandinavia and other European countries, and we give our best to hold our brand’s reputation. Palmse Trailer works hard to be the best tractor trailer in agriculture world. If you have questions, please don’t hesitate to contact our sales manager’s, contacts are here!
ACCESSORIES
Loading belt side
Support leg with a crank
Hydraulic support leg
Rear working light
Rear pumper
Trailer hook, rockinger
Boltable towing eye
Air brakes
Handbrake with a crank
LED side lights
Ask for an offer
PLATFORM TRAILERS
Our model range of platform trailers includes examples which have loading areas of between 6.5 to 9.8m. Trailers with a loading platform greater than 7.5m can be ordered with hydraulic bale holders. The hydraulic system for the bale holders is supplied by safety valves that prevent the support from falling downwards if the oil pressure is lost for some reason. Likewise, the use of safety valves also makes it possible to connect hydraulic hoses to the tractor when the system is under pressure. To reduce slipperiness, the platforms on these trailers are covered with corrugated steel plates, and there are no high edges. Due to this, goods can easily be loaded onto the trailer on euro pallets, for example. The construction of the axles makes it possible to mount wheels depending on the model with a width of 400-700 mm onto the trailers, thereby ensuring the best possible movement across fields. Double-axle trailers are available with bogie or spring axles, and these are designed so that the load is divided between the trailer and its drawbar. This transfers some of the load onto the rear wheels of the tractor, thereby guaranteeing better movement on softer ground. As a new product in the class of platform trailers, we offer a double-axle trailer with a higher load capacity, which is primarily intended for the transportation of silage rolls. Due to its load capacity of 19 tons, and hydraulic and extended sides, it can also be used for transporting straw rolls with a larger diameter (between 1.3 and 1.8 m). Starting from 2023 we are using new round design for bale holders.
