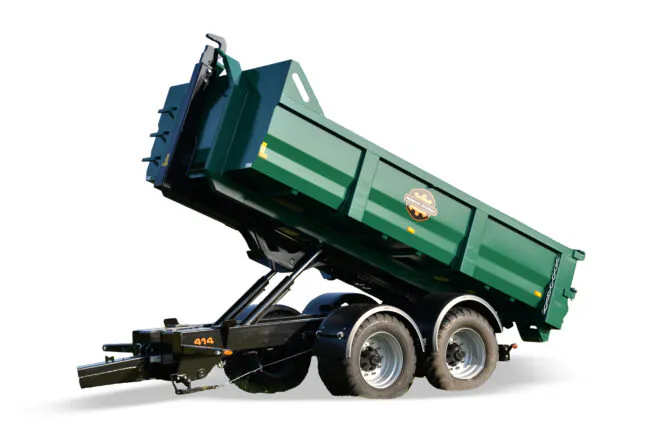

ML414-PS – hooklift
| Length (mm) (with HSD01) | 5624 |
| Width (mm) | 2450-2550 |
| Height (mm) | 2700 |
| Internal measurements of a platform (mm) | 4000-4500 |
| Capacity (m3) | - |
| Capacity with extensions (m3) | - |
| Base (mm) | 3555+1200 |
| Empty weight(kg) | 3000 |
| Max load capacity (kg) | 14000 |
| Total weight (kg) | 17000 |
| Hitch load (kg) | 2680 |
| Axel sum | 2 |
| Permissible axel load (kg) | 7160 |
| Hub/axel | 90x90, 8 bolts |
| Brake type | 300x135(314E); 4 brakes |
| Speed limit (km/h) | < 60(Airbr) |
| Suspension | Tandem parabolic |
| Hydraulic circuit working pressure of a brake (bar) | 115 |
| Working pressure of hydraulic circuit (bar) | 200 |
| Oil volume for tipping(L) | 12,5 |
| Standard wheels | 500/50R-17 |
| Tilt angle | 48 |
| Rear axle block | In standard |
This is best for you, if:
You have at least a 140 hp tractor
For transporting soil or other materials
1. GUARANTEED QUALITY – ISO 9001 CERTIFICATE
Recognition of our work processes and a firm guarantee of product quality of our tractor trailers in agriculture and road construction, incl hooklifts. Palmse Metall OÜ is a certified ISO 9001 company and we make sure that our trailers leave our production after they have been tested properly. You can read about ISO 9001 certification process and Bureau Veritas here. A solid choice, isn’t it?
2. ASSEMBLY PRECISION ENSURES LONG LIFE – LASER CUTTING
The metal is cut with a modern Bystronic laser cutter, which significantly increases assembly accuracy of the tractor trailers. This in turn ensures a more stable quality and better durability for our products. So precise that you can feel the sharpness in the air!
3. EVEN STRONGER – LARGE PRESS BRAKE
Our press brake with large dimensions is among the largest in nearby countries. This gives the possibility to bend most of the side profiles in one piece, which in turn reduces the number of welds and increases strength. Here’s how tractor trailer design can meet strength – the profiled side provides strength to reduce the number of posts in order to lower the final weight of the trailer. You can read about the Finnish company Aliko here. So this is how strong and high quality tractor trailers are made!
4. RELIABLE PARTNER – 20 YEARS OF EXPERIENCE
Tractor trailer models have been tested and developed over the years based on feedback from farmers to increase the ease of use and durability. We have put a lot into enhancing the details and bring in new solutions. Our tractor trailers are highly valued in Scandinavia and other European countries, and we give our best to hold our brand’s reputation. Palmse Trailer works hard to be the best tractor trailer in agriculture world. If you have questions, please don’t hesitate to contact our sales manager’s, contacts are here!
ACCESSORIES
Support leg with a crank
Hydraulic support leg
Rear working light
Rear pumper
Trailer hook, rockinger
Boltable towing eye
Front and rear mudguards
Air brakes
Handbrake with a crank
LED side lights
Ask for an offer
CONTAINER TRAILERS
The container trailer system is at its most useful in operations during which the same base chassis is used for transporting different loads or if a low loading height is required. Container trailer systems are often used for the production of firewood or the transportation of machinery (loading a mini-excavator on a 1.5-metre-high trailer without a loading bay is very difficult). There are carrier boxes of various capacitances and different platform bases available for
the container chassis. The load capacity of the chassis varies from 14 to 16.5 tons, and the length of boxes remains between four and six metres. Container trailers have a hydraulic blocking system on the rear axle which locks the axle, thereby making tilting and loading and unloading boxes more stable. The container trailer segment also includes the newest model ML414, with its chassis and mast construction, along with the geometry involved in loading and
unloading the container, having been changed significantly, as a result of which the trailer’s oil consumption levels have been reduced to 12.5l. In addition, the container and axle blocks are activated automatically according to the operation that is selected, which is why working with the ML414 is safer and quicker than with the previous model. Likewise, the main functions of the ML414 need only three hydraulic pairs on the tractor.
