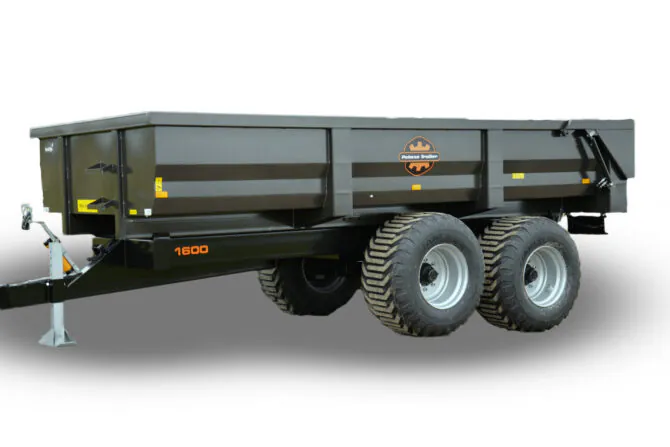

PT1600MB – dumper trailer
| Length (mm) | 6970 |
| Width (mm) | 2550 |
| Height (mm) | 2170 |
| Internal measurements of a platform (mm) | 5250x2310x750 |
| Capacity (m3) | 9,1 |
| Capacity with extensions (m3) | 17,6 |
| Base (mm) | 4270+1310 |
| Empty weight(kg) | 3650 |
| Max load capacity (kg) | 16000 |
| Total weight (kg) | 19650 |
| Hitch load (kg) | 3170 |
| Axel sum | 2 |
| Permissible axel load (kg/axel) | 8240 |
| Hub/axel | 90x90, 8 bolts |
| Self steering axles | - |
| Brake type | 350x90(359E); 2 or 4 brakes |
| Speed limit (km/h) | 40 |
| Suspension | Mechanical bogie |
| Hydraulic circuit working pressure of a brake (bar) | 160 |
| Working pressure of hydraulic circuit (bar) | 180-200 |
| Oil volume for tipping(L) | 30 |
| Tilt cylinder | 2NAS6 |
| Standard wheels | 550/45-22,5 |
| Tilt angle | 52 |
| Thickness of box’s bottom sheet(mm) | 6 |
| Thickness of box’s side sheet(mm) | 6 |
| Rear axle block | - |
This is best for you, if:
You have a tractor ca 160hp
You have a mini excavator
Soil transport, stone transport, etc

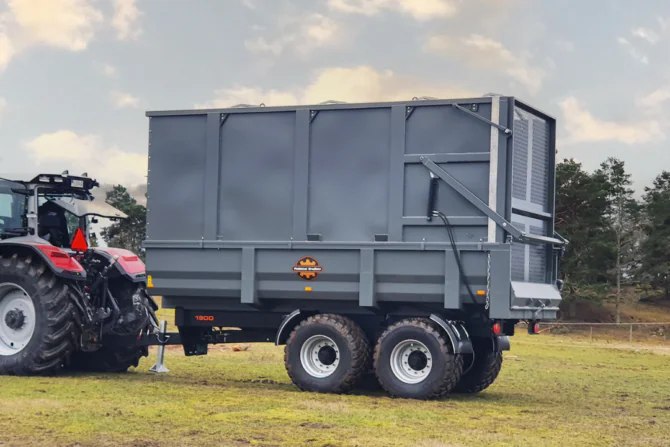

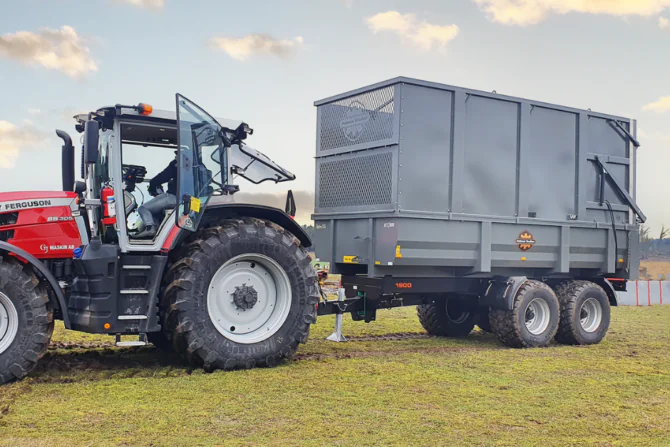

1. Silage extensions for dumper trailer
Silage extensions give you the possibility to use the farming tractor trailer in different circumstances. Silage extensions have front and back side with net. With silage extensions, the capacity of PT1600 is 33 m3. You can order the trailer with or without the extensions. We also have different extensions for example for grain which front and back are also fully covered.
2. GREATER DURABILITY – ROBOT WELDING
Most boxes and frames of the tractor trailers are made either completely or partially by robot welding. This ensures consistent solid quality and increased durability which are very important features in agriculture and farming. We have three robots in our production, cool, right?
3. GUARANTEED QUALITY – ISO 9001 CERTIFICATE
Recognition of our work processes and a firm guarantee of product quality of our tractor trailers in agriculture and road construction. Palmse Metall OÜ is a certified ISO 9001 company and we make sure that our trailers leave our production after they have been tested properly. You can read about ISO 9001 certification process and Bureau Veritas here. A solid choice, isn’t it?
4. ASSEMBLY PRECISION ENSURES LONG LIFE – LASER CUTTING
The metal is cut with a modern Bystronic laser cutter, which significantly increases assembly accuracy of the tractor trailers. This in turn ensures a more stable quality and better durability for our products. So precise that you can feel the sharpness in the air!
5. EVEN STRONGER – LARGE PRESS BRAKE
Our press brake with large dimensions is among the largest in nearby countries. This gives the possibility to bend most of the side profiles in one piece, which in turn reduces the number of welds and increases strength. Here’s how tractor trailer design can meet strength – the profiled side provides strength to reduce the number of posts in order to lower the final weight of the trailer. You can read about the Finnish company Aliko here. So this is how strong and high quality tractor trailers are made!
6. GREATER CONVENIENCE OF USE – A WIDE SELECTION OF TAILGATES
By choosing the right hatch, the ease of use increases significantly. Choose between tailgates with different functionalities. We are very happy to help you with different questions that may occur when choosing a dumper trailer or with any other technical questions. How to choose the right trailer that suits your needs? See our blog post here. If you have any other questions – see our contacts here.
7. RELIABLE PARTNER – 20 YEARS OF EXPERIENCE
Tractor trailer models have been tested and developed over the years based on feedback from farmers to increase the ease of use and durability. We have put a lot into enhancing the details and bring in new solutions. Our tractor trailers are highly valued in Scandinavia and other European countries, and we give our best to hold our brand’s reputation. Palmse Trailer works hard to be the best tractor trailer in agriculture world. If you have questions, please don’t hesitate to contact our sales manager’s, contacts are here!
ACCESSORIES
Hydraulic backdoor
right converted backdoor
Hanging backdoor which opens to the right
Hanging backdoor
Hydr. backdoor opening to the right
Silage extensions
Support leg with a crank
Hydraulic support leg
Hardox bottom
Load cover (tent)
Rear working light
Rear pumper
Trailer hook, rockinger
Boltable towing eye
Front and rear mudguards
Air brakes
Handbrake with a crank
LED side lights
Ask for an offer
DUMPER TRAILERS
Dumper trailers is the largest product group in the product range of Palmse Trailer. It has the highest number of variations or models as well as the greatest production capacity.
The advantage of dumper trailers over other trailer types is their versatility. Due to the different backdoors and additional extensions that are available, the product’s uses are limitless, i.e. it can be used for various large-scale transportation works, such as those involving soil, manure, gravel, grain, etc. Dumper trailers that are equipped with Palms cranes are perfect for farmers as well as companies for loading work in landscaping, forestry, harvesting, etc.
The advantages of Palmse Trailer’s dumper trailers are:
• strong box;
• durable bottom frame;
• dependable dumping system;
• bogie axle with springs that relieve heavy loads and hydraulic
drawbar suspension for larger models;
• air or hydraulic brake system, according to the client’s preferences.
