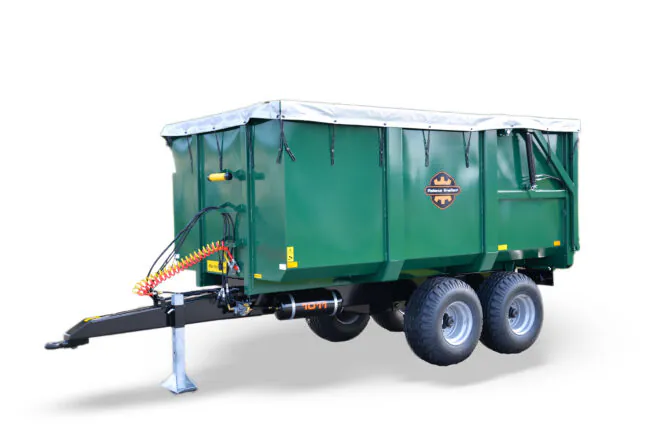

PT1011
| Length (mm) | 5332 |
| Width (mm) | 2215 |
| Height (mm) | 2528 |
| Internal measurements of a platform (mm) | 3680x2080x1450 |
| Capacity (m3) | 11 |
| Capacity with extensions (m3) | - |
| Base (mm) | 3504+950 |
| Empty weight(kg) | 2200 |
| Max load capacity (kg) | 10000 |
| Total weight (kg) | 12200 |
| Hitch load (kg) | 1700 |
| Axel sum | 2 |
| Permissible axel load (kg/axel) | 5250 |
| Hub/axel | 70x70, 6 bolts |
| Self steering axles | - |
| Brake type | 300x90; 0, 2 või 4 brakes |
| Suspension | Mechanical bogie |
| Hydraulic circuit working pressure of a brake (bar) | 160 |
| Working pressure of hydraulic circuit (bar) | 180-200 |
| Oil volume for tipping(L) | 9 |
| Tilt cylinder | NAS 4 |
| Standard wheels | 400/60-15,5 |
| Tilt angle | 52 |
| Thickness of box’s bottom sheet(mm) | 4 |
| Thickness of box’s side sheet(mm) | 3 |
| Rear axle block | - |
This is best for you, if:
You have a smaller tractor
You have a mini excavator
Soil transport, stone transport, etc
1. GREATER DURABILITY – ROBOT WELDING
Most boxes and frames are made either completely or partially by robot welding. This ensures consistent solid quality and increased durability. We have three robots, cool, right?
2. GUARANTEED QUALITY – ISO 9001 CERTIFICATE
Recognition of our work processes and a firm guarantee of product quality. Palmse Metall OÜ is a certified ISO 9001 company. A solid choice, isn’t it?
3. ASSEMBLY PRECISION ENSURES LONG LIFE – LASER CUTTING
The metal is cut with a modern laser cutter, which significantly increases assembly accuracy. This in turn ensures a more stable quality. So precise that you can feel the sharpness in the air!
4. EVEN STRONGER – LARGE PRESS BRAKE
Our press brake with solid dimensions is among the largest in nearby countries. This gives the possibility to bend most of the side profiles in one piece, which in turn reduces the number of welds and increases strength.
5. GREATER CONVENIENCE OF USE – A WIDE SELECTION OF TAILGATES
By choosing the right hatch, the ease of use increases significantly. Choose between tailgates with different functionalities.
Accessories
Hydraulic backdoor
right converted backdoor
Hanging backdoor which opens to the right
Hanging backdoor
hydr. backdoor opening to the right
Support leg with a crank
Hydraulic support leg
Hardox bottom
Load cover (tent)
Rear working light
Rear pumper
Trailer hook, rockinger
Boltable towing eye
Front and rear mudguards
Air brakes
Handbrake with a crank
LED side lights
Ask for an offer
DUMPER TRAILERS
Dumper trailers is the largest product group in the product range of Palmse Trailer. It has the highest number of variations or models as well as the greatest production capacity.
The advantage of dumper trailers over other trailer types is their versatility. Due to the different backdoors and additional extensions that are available, the product’s uses are limitless, i.e. it can be used for various large-scale transportation works, such as those involving soil, manure, gravel, grain, etc. Dumper trailers that are equipped with Palms cranes are perfect for farmers as well as companies for loading work in landscaping, forestry, harvesting, etc.
The advantages of Palmse Trailer’s dumper trailers are:
• strong box;
• durable bottom frame;
• dependable dumping system;
• bogie axle with springs that relieve heavy loads and hydraulic
drawbar suspension for larger models;
• air or hydraulic brake system, according to the client’s preferences.
