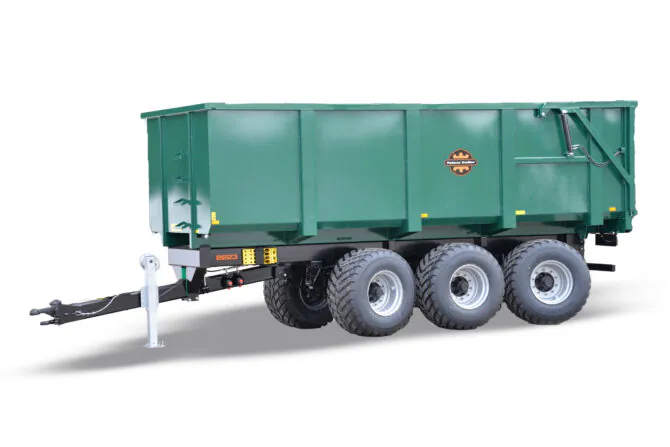

PT2223

Length (mm) (with HSD01)8085
Width (mm)2530
Height (mm)3155
Internal measurements of a platform (mm)6170x2310x1600
Capacity (m3)22.8 (24.5)
Capacity with extensions (m3)35.6 (38.3)
Base (mm)4095+1360+1360
Empty weight(kg)6352
Max load capacity (kg)22000
Total weight (kg)28352
Hitch load (kg)3500
Axel sum3
Permissible axel load (kg)8284
Hub/axel100x100, 10 bolts
Self steering axlesFirst and posterior
Brake type400x80(408E), 6 brakes
Speed limit (km/h)40
SuspensionTridem parabolic
Hydraulic circuit working pressure of a brake (bar)160
Working pressure of hydraulic circuit (bar)180-200
Oil volume for tipping(L)40
Tilt cylinder2NAT6
Standard wheels600/50-22,5
Tilt angle52
Thickness of box’s bottom sheet(mm)6
Thickness of box’s side sheet(mm)4
Rear axle blockin Standard
Photos are illustrative

This is best for you, if:

You have a bigger tractor (ca 220hp)

grain, crops and silage transport etc

1. GREATER DURABILITY – ROBOT WELDING

Most boxes and frames of dumper trailers are made either completely or partially by robot welding. This ensures consistent solid quality and increased durability. We have three robots, cool, right?

  • robot welding

2. GUARANTEED QUALITY – ISO 9001 CERTIFICATE

Recognition of our work processes and a firm guarantee of product quality of our tractor trailers in agriculture and road construction. Palmse Metall OÜ is a certified ISO 9001 company and we make sure that our trailers leave our production after they have been tested properly. You can read about ISO 9001 certification process and Bureau Veritas here. A solid choice, isn’t it?

  • Strong and efficient ISO9001 certified Palmse Trailer

3. ASSEMBLY PRECISION ENSURES LONG LIFE – LASER CUTTING

The metal is cut with a modern laser cutter, which significantly increases assembly accuracy. This in turn ensures a more stable quality. So precise that you can feel the sharpness in the air!

  • laser-cutting-palmse-tractortrailer

4. EVEN STRONGER – LARGE PRESS BRAKE

Our press brake with solid dimensions is among the largest in nearby countries. This gives the possibility to bend most of the side profiles in one piece, which in turn reduces the number of welds and increases strength.

5. GREATER CONVENIENCE OF USE – A WIDE SELECTION OF TAILGATES

By choosing the right hatch, the ease of use increases significantly. Choose between tailgates with different functionalities.

ACCESSORIES

  • PT1300 hydrauliline luuk111

Hydraulic backdoor

  • PT1000-konvertluugiga-new
  • paremale avanev rippluuk konvertluugiga

right converted backdoor

  • paremale avanev rippluuk

Hanging backdoor which opens to the right

  • Rippluuk

Hanging backdoor

  • paremale avanev hydroluuk

hydr. backdoor opening to the right

  • vandaga-tugijalgIMG_4006 copy

Support leg with a crank

  • Hyd.tugijalg_1

Hydraulic support leg

  • kuluteras-veebilehele

Hardox bottom

  • Tent with rubber stripes

Load cover (tent)

  • Working light LED

Rear working light

  • allasoidutoke

Rear pumper

  • jarelhaagise konks rockinger

Trailer hook, rockinger

  • polditav veosilmus

Boltable towing eye

  • haagise porilauad ees ja taga

Front and rear mudguards

  • haagis õhkpiduritega

Air brakes

  • Haagise käsipidur

Handbrake with a crank

  • Haagise Led tuled

LED side lights

Ask for an offer

    DUMPER TRAILERS

    Dumper trailers is the largest product group in the product range of Palmse Trailer. It has the highest number of variations or models as well as the greatest production capacity.
    The advantage of dumper trailers over other trailer types is their versatility. Due to the different backdoors and additional extensions that are available, the product’s uses are limitless, i.e. it can be used for various large-scale transportation works, such as those involving soil, manure, gravel, grain, etc. Dumper trailers that are equipped with Palms cranes are perfect for farmers as well as companies for loading work in landscaping, forestry, harvesting, etc.

    The advantages of Palmse Trailer’s dumper trailers are:
    • strong box;
    • durable bottom frame;
    • dependable dumping system;
    • bogie axle with springs that relieve heavy loads and hydraulic
    drawbar suspension for larger models;
    • air or hydraulic brake system, according to the client’s preferences.
